Submersible Flat Cables

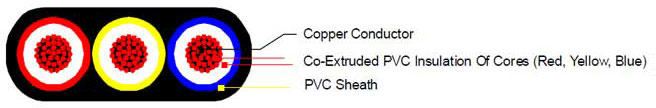

CONSTRUCTION OF FLAT CABLE
3 CORE FLAT CABLES
PRODUCT DESCRIPTION
- Conductors The conductors are drawn from bright electrolytic grade copper annealed and bunched together.
- Insulation Bunched conductors are insulated with specially formulated PVC compound having high insulationresistance values.
- Sheathing 3 Core are in parallel position and sheathed with a special grade of PVC compound which has high resistivity water grease, oil etc.
- Quality Control High quality standards in every product. Strict quality controls are carried out every stage fromrawmaterial to finishedgoods stage sotodeliver the best product.
- Application Ideal for irrigation pumps, drinking water supply pump, offshore drilling rings, fire fighting equipment sewagetreatment plants, seawater / riverwater / handling equipments
Quick Inquiry
"SIGMA" 3 CORE FLAT CABLES FOR SUBMERSIBLES PUMPS
| CONDUCTOR | PVC INSULATION | PVC SHEATH | Current Rating at 40 C Ampls. | Approx Weight Kg./Km. | ||||
|---|---|---|---|---|---|---|---|---|
| Nominal Area in Sq. mm. | Nos. & Dia. of Wire Nos./mm. | Nominal Thckness | Nominal Core Dia. | Nominal Thckness | Approx. Overall Dimensions | |||
| Thickness mm. | Width mm. | |||||||
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.15 | 6.0 | 12.8 | 14 | 125 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.15 | 6.4 | 14.6 | 18 | 175 |
| 4.0 | 56/0.30 | 1.0 | 4.65 | 1.15 | 7.4 | 17.2 | 26 | 235 |
| 6.0 | 85/0.30 | 1.0 | 5.30 | 1.15 | 7.9 | 18.7 | 31 | 325 |
| 10.0 | 140/0.30 | 1.0 | 6.60 | 1.40 | 9.9 | 23.7 | 42 | 525 |
| 16.0 | 226/0.30 | 1.0 | 8.20 | 1.40 | 11.4 | 28.0 | 57 | 785 |
| 25.0 | 354/0.30 | 1.2 | 10.10 | 2.00 | 14.7 | 35.5 | 72 | 1270 |
| 35.0 | 495/0.30 | 1.2 | 11.50 | 2.00 | 16.2 | 39.5 | 90 | 1640 |
| 50.0 | 703/0.30 | 1.4 | 13.60 | 2.20 | 18.3 | 45.5 | 115 | 2080 |
| 70.0 | 440/0.30 | 1.4 | 15.30 | 2.20 | 20.0 | 51.0 | 143 | 2830 |
NOTE:
Sheath thickness given are nominal and overall diameters given are
approximate. The nos. of wires indicated are approximate and diameter of strands is
nominal andshall be such that satisfies the requirements as per IS : 8130
